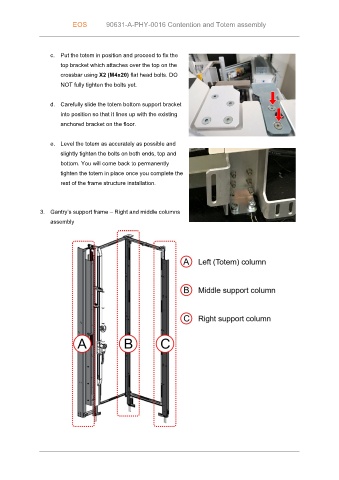

EOS 90631-A-PHY-0016 Contention and Totem assembly

c. Put the totem in position and proceed to fix the
top bracket which attaches over the top on the

crossbar using X2 (M4x20) flat head bolts. DO
NOT fully tighten the bolts yet.

d. Carefully slide the totem bottom support bracket
into position so that it lines up with the existing
anchored bracket on the floor.

e. Level the totem as accurately as possible and
slightly tighten the bolts on both ends, top and
bottom. You will come back to permanently
tighten the totem in place once you complete the
rest of the frame structure installation.

3. Gantry’s support frame – Right and middle columns
assembly
