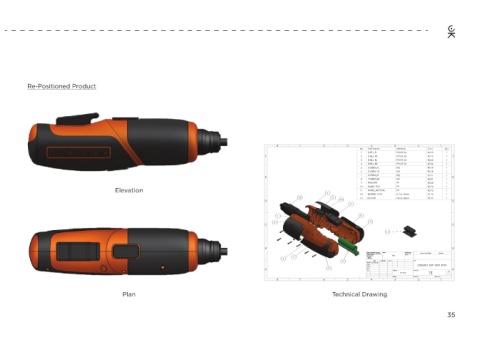

CAD for Product Re-Positioning K

Re-Positioned Product

8 7 6 5 4 3 2 1
No. Part Name Material Cost Qty.
1 SHELL_FL PP/GF 30 €0.23 1
F 2 SHELL_FR PP/GF 30 €0.23 1 F
3 SHELL_BL PP/GF 30 €0.26 1
4 SHELL_BR PP/GF 30 €0.26 1
5 OVERM_FL TPE €0.18 1
6 OVERM_FR TPE €0.18 1
7 OVERM_BL TPE €0.21 1
E E
8 OVERM_BR TPE €0.21 1
9 TRIGGER PP €0.20 1
10 PANEL_TOP PP €0.76 1
Elevation 11 PANEL_BOTTOM PP €0.72 1
2 12 BATTERY_PCB Li, Cu, Resin €1.15 1
13 6 13 MOTOR Steel, Nylon €3.44 1
D 10 D
9
1 8
5 4
C C
11
B B
UNLESS OTHERWISE SPECIFIED: FINISH: DEBURR AND DO NOT SCALE DRAWING REVISION
DIMENSIONS ARE IN MILLIMETERS BREAK SHARP
SURFACE FINISH:
EDGES
7 TOLERANCES: N/A
LINEAR:
3 ANGULAR:
12 NAME SIGNATURE DATE TITLE:
DRAWN Ciarán Kinsella
CHK'D ASSEMBLY_EXP_VIEW_BOM
APPV'D
A 11 MFG A
Q.A MATERIAL: DWG NO. A3
SEE BoM 15
WEIGHT: SCALE:1:1 SHEET 1 OF 1
8 7 6 5 4 3 2 1
Plan Technical Drawing
