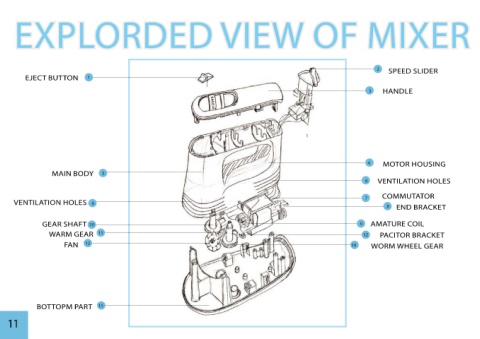

EXPLORDED VIEW OF MIXER FINAL SOLIDWORKS

2 SPEED SLIDER

EJECT BUTTON 1

3 HANDLE

1

4 MOTOR HOUSING
MAIN BODY 5

6 VENTILATION HOLES

7 COMMUTATOR
VENTILATION HOLES 6
8 END BRACKET

GEAR SHAFT 10 9 AMATURE COIL
WARM GEAR 11 12 PACITOR BRACKET

FAN 13 14 WORM WHEEL GEAR

BOTTOPM PART 15

11 12
