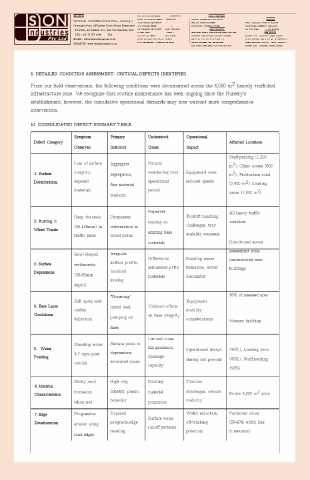

5. DETAILED CONDITION ASSESSMENT: CRITICAL DEFECTS IDENTIFIED

2
From our field observations, the following conditions were documented across the 6,000 m heavily trafficked
infrastructure zone. We recognize that routine maintenance has been ongoing since the Nursery's
establishment; however, the cumulative operational demands may now warrant more comprehensive

intervention.

5.1 CONSOLIDATED DEFECT SUMMARY TABLE

Symptom Primary Understood Operational
Defect Category Affected Locations
Observed Indicator Cause Impact

Staff parking (1,200
Loss of surface Aggregate Natural m ), Clinic access (800
2
2
1. Surface integrity; segregation, weathering over Equipment wear, m ), Production road
Deterioration exposed operational reduced speeds 2
fine material (2,400 m ), Loading
materials period zones (1,600 m )
2
washout

Repeated All heavy traffic
Deep channels Permanent Forklift handling
2. Rutting & loading on corridors
(50-150mm) in deformation in challenges, tray
Wheel Tracks existing base
traffic lanes wheel paths stability concerns
materials Distributed across

assessment zone;
Bowl-shaped Irregular
Differential Standing water concentrated near
3. Surface settlements surface profile, settlement of fill formation, driver

Depressions localized buildings
(30-80mm materials discomfort
sinking
depth)

"Bouncing" 35% of assessed area
Soft spots with Equipment
4. Base Layer under load, Moisture effects
visible stability
Conditions on base integrity
deflection pumping of considerations Western facilities
fines

Limited cross-
Standing water Surface pools in
5. Water fall gradients, Operational delays ( 40% ), Loading zone
3-7 days post- depressions,
Ponding drainage during wet periods ( 60% ), Staff parking
rainfall saturated zones capacity
(50%)

Sticky mud High clay Existing Traction
6. Material
2
Characteristics formation content, plastic material challenges, vehicle Entire 6,000 m zone
when wet behavior properties mobility

7. Edge Progressive Exposed Width reduction, Perimeter zones
Surface water
Deterioration erosion along subgrade,edge off-tracking (20-40% width loss
raveling runoff patterns potential in sections)
road edges
