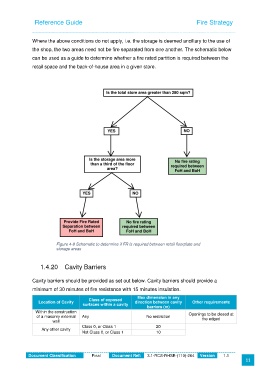

Page 12 - food store model (with first floor accomodation)
P. 12

Reference Guide                                                         Fire Strategy



               Where the above conditions do not apply, i.e. the storage is deemed ancillary to the use of

               the shop, the two areas need not be fire separated from one another. The schematic below
               can be used as a guide to determine whether a fire rated partition is required between the

               retail space and the back-of-house area in a given store.

































                          Figure 4-8 Schematic to determine if FR is required between retail floorplate and
                          storage areas


                   1.4.20  Cavity Barriers


               Cavity barriers should be provided as set out below. Cavity barriers should provide a
               minimum of 30 minutes of fire resistance with 15 minutes insulation.

                                                              Max dimension in any
                                        Class of exposed
                  Location of Cavity                         direction between cavity   Other requirements
                                      surfaces within a cavity
                                                                  barriers (m)
                 Within the construction                                             Openings to be closed at
                 of a masonry external   Any                      No restriction           the edged
                        wall
                                      Class 0, or Class 1             20
                    Any other cavity
                                      Not Class 0, or Class 1         10
