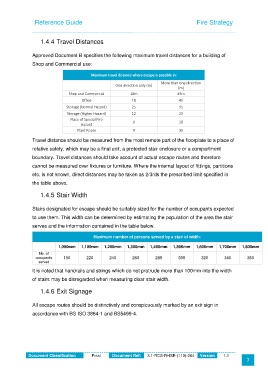

Page 8 - food store model (with first floor accomodation)
P. 8

Reference Guide                                                         Fire Strategy



                   1.4.4 Travel Distances


               Approved Document B specifies the following maximum travel distances for a building of

               Shop and Commercial use:

                                         Maximum travel distance where escape is possible in:
                                                                         More than one direction
                                                    One direction only (m)
                                                                                (m)
                                Shop and Commercial        18m                  45m
                                     Office                 18                   45
                               Storage (Normal Hazard)      25                   45
                               Storage (Higher Hazard)      12                   25
                                Place of Special Fire       9                    18
                                     Hazard
                                   Plant Room               9                    35
               Travel distance should be measured from the most remote part of the floorplate to a place of
               relative safety, which may be a final exit, a protected stair enclosure or a compartment

               boundary. Travel distances should take account of actual escape routes and therefore
               cannot be measured over fixtures or furniture. Where the internal layout of fittings, partitions

               etc. is not known, direct distances may be taken as 2/3rds the prescribed limit specified in
               the table above.

                   1.4.5 Stair Width


               Stairs designated for escape should be suitably sized for the number of occupants expected
               to use them. This width can be determined by estimating the population of the area the stair

               serves and the information contained in the table below.

                                           Maximum number of persons served by a stair of width:

                           1,000mm   1,100mm   1,200mm    1,300mm   1,400mm   1,500mm   1,600mm   1,700mm    1,800mm
                  No. of
                 occupants   150       220        240       260       280       300       320        340       360
                  served
               It is noted that handrails and strings which do not protrude more than 100mm into the width
               of stairs may be disregarded when measuring clear stair width.


                   1.4.6 Exit Signage


               All escape routes should be distinctively and conspicuously marked by an exit sign in
               accordance with BS ISO 3864-1 and BS5499-4.
