Resins

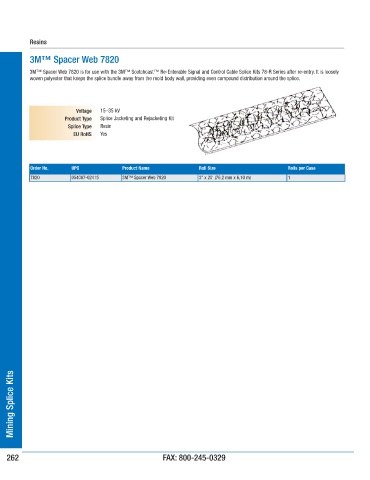

3M™ Spacer Web 7820

3M™ Spacer Web 7820 is for use with the 3M™ Scotchcast™ Re-Enterable Signal and Control Cable Splice Kits 78-R Series after re-entry. It is loosely
woven polyester that keeps the splice bundle away from the mold body wall, providing even compound distribution around the splice.

Voltage 15–35 kV
Product Type Splice Jacketing and Rejacketing Kit
Splice Type Resin
EU RoHS Yes

Order No. UPC Product Name Roll Size Rolls per Case
7820 054007-02415 3M™ Spacer Web 7820 3” x 20’ (76,2 mm x 6,10 m) 1
