Mining Tapes

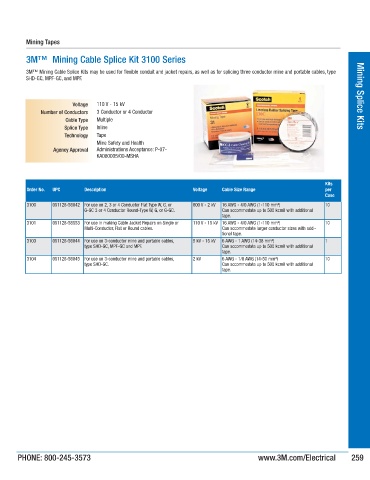

3M™ Mining Cable Splice Kit 3100 Series

3M™ Mining Cable Splice Kits may be used for flexible conduit and jacket repairs, as well as for splicing three conductor mine and portable cables, type
SHD-GC, MPF-GC, and MPF.

Voltage 110 V - 15 kV Mining Splice Kits
Number of Conductors 3 Conductor or 4 Conductor
Cable Type Multiple
Splice Type Inline
Technology Tape
Mine Safety and Health
Agency Approval Administrations Acceptance: P-07-
KA080005/00-MSHA

Kits
Order No. UPC Description Voltage Cable Size Range per
Case
3100 051128-56842 For use on 2, 3 or 4 Conductor Flat Type W, G, or 600 V - 2 kV 16 AWG - 4/0 AWG (1-110 mm²) 10
G-GC 3 or 4 Conductor Round-Type W, G, or G-GC. Can accommodate up to 500 kcmil with additional
tape.
3101 051128-58553 For use in making Cable Jacket Repairs on Single or 110 V - 15 kV 16 AWG - 4/0 AWG (1-110 mm²) 10
Multi-Conductor, Flat or Round cables. Can accommodate larger conductor sizes with addi-
tional tape.
3103 051128-56844 For use on 3-conductor mine and portable cables, 5 kV - 15 kV 6 AWG - 1 AWG (14-38 mm²) 1
type SHD-GC, MPF-GC and MPF. Can accommodate up to 500 kcmil with additional
tape.
3104 051128-56845 For use on 3-conductor mine and portable cables, 2 kV 6 AWG - 1/0 AWG (14-50 mm²) 10
type SHD-GC. Can accommodate up to 500 kcmil with additional
tape.
