Brake
Brake system
slowing
stoping
holding (berhenti supaya tidak bergerak )
steering

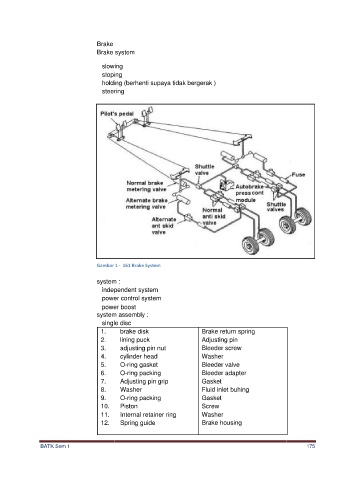

Gambar 1 - 161 Brake System
system :
independent system
power control system
power boost
system assembly :
single disc
1. brake disk Brake return spring
2. lining puck Adjusting pin
3. adjusting pin nut Bleeder screw
4. cylinder head Washer
5. O-ring gasket Bleeder valve
6. O-ring packing Bleeder adapter
7. Adjusting pin grip Gasket
8. Washer Fluid inlet buhing
9. O-ring packing Gasket
10. Piston Screw
11. Internal retainer ring Washer
12. Spring guide Brake housing
