Widodo Puji / JOJAPS – JOURNAL ONLINE JARINGAN PENGAJIAN SENI BINA

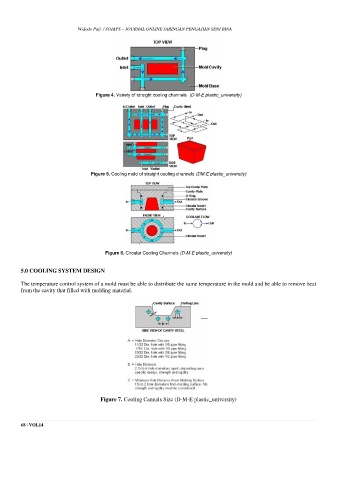

Figure 4. Variety of straight cooling channels (D-M-E plastic_university)
Figure 5. Cooling mold of straight cooling channels (DM-E plastic_university)
Figure 6. Circular Cooling Channels (D-M-E plastic_university)
5.0 COOLING SYSTEM DESIGN
The temperature control system of a mold must be able to distribute the same temperature in the mold and be able to remove heat
from the cavity that filled with molding material.
Figure 7. Cooling Cannals Size (D-M-E plastic_university)
