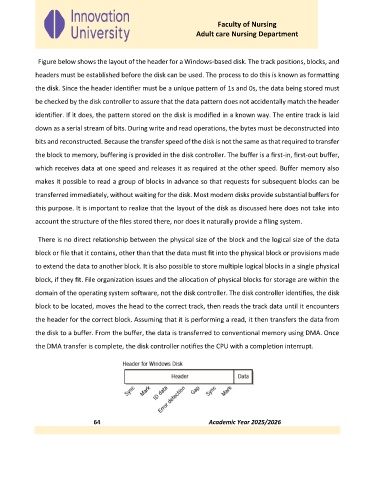

Figure below shows the layout of the header for a Windows-based disk. The track positions, blocks, and

headers must be established before the disk can be used. The process to do this is known as formatting

the disk. Since the header identifier must be a unique pattern of 1s and 0s, the data being stored must
be checked by the disk controller to assure that the data pattern does not accidentally match the header

identifier. If it does, the pattern stored on the disk is modified in a known way. The entire track is laid

down as a serial stream of bits. During write and read operations, the bytes must be deconstructed into
bits and reconstructed. Because the transfer speed of the disk is not the same as that required to transfer

the block to memory, buffering is provided in the disk controller. The buffer is a first-in, first-out buffer,

which receives data at one speed and releases it as required at the other speed. Buffer memory also

makes it possible to read a group of blocks in advance so that requests for subsequent blocks can be

transferred immediately, without waiting for the disk. Most modern disks provide substantial buffers for
this purpose. It is important to realize that the layout of the disk as discussed here does not take into

account the structure of the files stored there, nor does it naturally provide a filing system.

There is no direct relationship between the physical size of the block and the logical size of the data

block or file that it contains, other than that the data must fit into the physical block or provisions made
to extend the data to another block. It is also possible to store multiple logical blocks in a single physical

block, if they fit. File organization issues and the allocation of physical blocks for storage are within the

domain of the operating system software, not the disk controller. The disk controller identifies, the disk
block to be located, moves the head to the correct track, then reads the track data until it encounters

the header for the correct block. Assuming that it is performing a read, it then transfers the data from

the disk to a buffer. From the buffer, the data is transferred to conventional memory using DMA. Once

the DMA transfer is complete, the disk controller notifies the CPU with a completion interrupt.
