Chapter (3) Networking Media and Data Link Layers Protocols

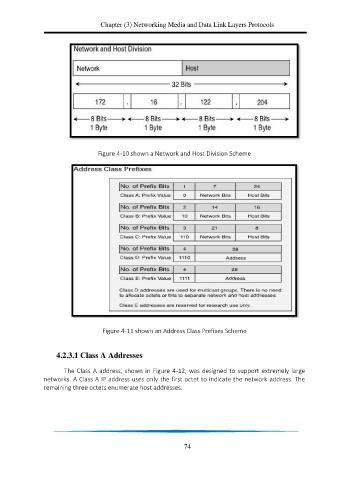

Figure 4-10 shown a Network and Host Division Scheme
Figure 4-11 shown an Address Class Prefixes Scheme
4.2.3.1 Class A Addresses
The Class A address, shown in Figure 4-12, was designed to support extremely large
networks. A Class A IP address uses only the first octet to indicate the network address. The
remaining three octets enumerate host addresses.
