Assumptions :
1- Mass flow rate enters RSCC = 1Mkg/hr (277.78 kg/s) .
2- Wind velocity =1 m/s.
2
3- Heat transfer coefficient h out = 10 W/m K.
4- Heat loss in pipes neglectable .
5- Pressure difference between each stage 1.5 bar .
6- The domain of salinity we working with does not have effect of flow and
boiling temperature .( Appendix A3)[14]
The energy balance equation based on the first law of thermodynamics needs to
rise the brine temperature from 41° c to 110° c is :
̇
̇
= . . ( – ) (3.1)
= 277.78 * 3800 (110-41)
= 72.83 MW
Solar collectors calculations :
In this project, the module of the LS-2 PTC [1,2,3] is used in order to gain the
required energy to heat brine water. it is illustrated in Figure 1a.

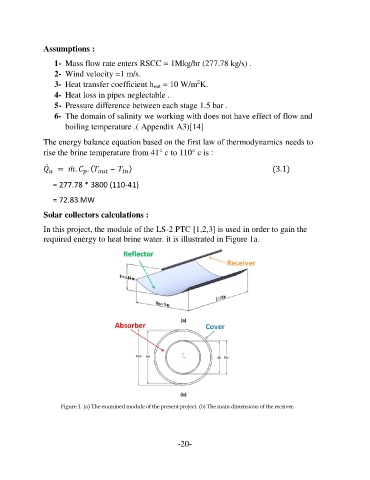

Figure 1. (a) The examined module of the present project. (b) The main dimensions of the receiver.
-20-
