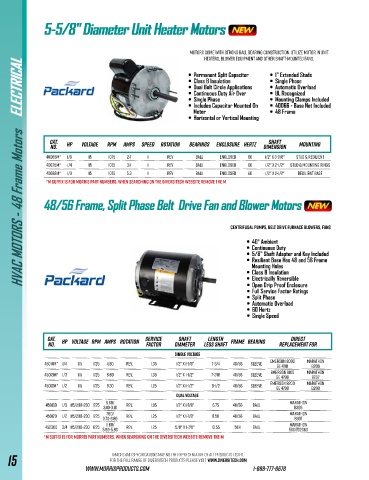

Page 18 - 2025 MORRIS Diversitech HVAC Catalog

5-5/8" Diameter Unit Heater Motors5-5/8" Diameter Unit Heater Motors

Motors come with strong ball bearing construction. Utilize motor in unit
ELECTRICAL ELECTRICAL • Permanent Split Capacitor • 1" Extended Studs
heaters, blower equipment and other shaft-mounted fans.

• Single Phase
• Class B Insulation
• Dual Bolt Circle Applications
• Automatic Overload
• Continuous Duty Air Over
• UL Recognized
• Single Phase
• Mounting Clamps Included
• 40066 - Base Not Included
• Includes Capacitor Mounted On
• 48 Frame
Motor
HVAC MOTORS - 48 Frame Motors
CAT. HP Voltage RPM Amps Speed Rotation • Horizontal or Vertical Mounting Shaft Mounting
Enclosure Hertz
Bearings
NO. Dimension
40066M* 1/6 115 1075 2.4 1 Rev Ball Enclosed 60 1/2" x 3-3/8" Stud & Resilient
40025M* 1/4 115 1075 3.4 1 Rev Ball Enclosed 60 1/2" x 2-1/2" Stud & Mounting Rings
40033M* 1/3 115 1075 5.3 1 Rev Ball Enclosed 60 1/2" x 2-1/2" Resilient Base
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M

48/56 Frame, Split Phase Belt Drive Fan and Blower Motors
48/56 Frame, Split Phase Belt Drive Fan and Blower Motors

Centrifugal Pumps, Belt Drive Furnace Blowers, Fans
• 40° Ambient
• Continuous Duty
• 5/8" Shaft Adapter and Key Included
• Resilient Base Has 48 and 56 Frame
Mounting Holes
• Class B Insulation
• Electrically Reversible
• Open Drip Proof Enclosure
• Full Service Factor Ratings
• Split Phase
• Automatic Overload
• 60 Hertz
• Single Speed

CAT. Service Shaft Length Direct
NO. HP Voltage RPM Amps Rotation Factor Diameter Less Shaft Frame Bearing Replacement For

Single Voltage
45014M* 1/4 115 1725 4.80 Rev. 1.35 1/2" x 1-7/8" 7-3/4 48/56 Sleeve Emerson 8000 Marathon
B206
GE 4701
45013M* 1/3 115 1725 6.60 Rev. 1.35 1/2" x 1-1/2" 7-7/16 48/56 Sleeve Emerson 8100 Marathon
GE 4706
B207
45012M* 1/2 115 1725 8.30 Rev. 1.25 1/2" x 1-1/2" 8-1/2 48/56 Sleeve Emerson 8200 Marathon
GE 4708
B208
Dual Voltage
6.60/
45013D 1/3 115/208-230 1725 3.40-3.10 Rev. 1.35 1/2" x 1-7/8" 6.75 48/56 Ball Marathon
B305
7.60/
45012D 1/2 115/208-230 1725 3.70-3.80 Rev. 1.25 1/2" x 1-7/8" 8.58 48/56 Ball Marathon
B307
11.60/
Marathon
45230D 3/4 115/208-230 1725 5.90-5.80 Rev. 1.25 5/8" x 1-7/8" 10.55 56H Ball 56S17D2060
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M
15 FOR THE FULL RANGE OF DIVERSITECH PRODUCTS PLEASE VISIT www.DIVERSITECH.COM
Images and Specifications may not be representative of all products listed.
