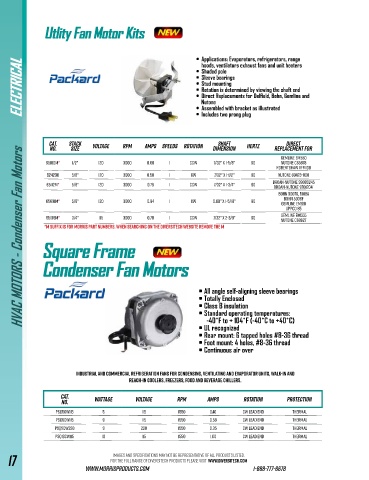

Page 20 - 2025 MORRIS Diversitech HVAC Catalog

Utlity Fan Motor KitsUtlity Fan Motor Kits

ELECTRICAL ELECTRICAL • Applications: Evaporators, refrigerators, range
hoods, ventilators exhaust fans and unit heaters
• Shaded pole
• Sleeve bearings
• Stud mounting
• Rotation is determined by viewing the shaft end
• Direct Replacements for Delfield, Bohn, Gemline and
Nutone
• Assembled with bracket as illustrated
• Includes two prong plug

CAT. Stack Voltage RPM Amps Speeds Rotation SHAFT Hertz Direct
HVAC MOTORS - Condenser Fan Motors
NO. Size DIMENSION Replacement For
Gemline EM550
65100M* 1/2" 120 3000 0.60 1 CCW 7/32" X 1-5/8" 60 Nutone C65878
Robertshaw VFM100
82423K 5/8" 120 3000 0.50 1 CW 7/32" x 1-1/2" 60 Nutone 89423-000
65112M* 5/8" 120 3000 0.76 1 CCW 7/32" X 1-3/4" 60 Broan-Nutone 99080245
Broan-Nutone 97012041
BOHN 5007S, 5018A
BOHN 5036F
65691M* 5/8" 120 3000 0.64 1 CW 0.181" X 1-5/16" 60 GEMLINE EM691
UPPCO 85
65106M* 3/4" 115 3000 0.70 1 CCW 7/32" X 2-3/8" 60 GEMLINE EM555
NUTONE C68627
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M
Square FrameSquare Frame

Condenser Fan MotorsCondenser Fan Motors

• All angle self-aligning sleeve bearings
• Totally Enclosed
• Class B insulation
• Standard operating temperatures:
-40˚F to + 104˚F (-40˚C to +40˚C)
• UL recognized
• Rear mount: 6 tapped holes #8-36 thread
• Foot mount: 4 holes, #8-36 thread
• Continuous air over

Industrial and commercial refrigeration fans for condensing, ventilating and evaporator units, walk-in and
reach-in coolers, freezers, food and beverage chillers.

CAT.
NO. Wattage Voltage RPM Amps Rotation PROTECTION
PSQ5CW115 5 115 1550 0.40 CW Lead End Thermal
PSQ9CW115 9 115 1550 0.58 CW Lead End Thermal
PSQ9CW230 9 230 1550 0.35 CW Lead End Thermal
PSQ18CW115 18 115 1550 1.00 CW Lead End Thermal

17 FOR THE FULL RANGE OF DIVERSITECH PRODUCTS PLEASE VISIT www.DIVERSITECH.COM
Images and Specifications may not be representative of all products listed.
