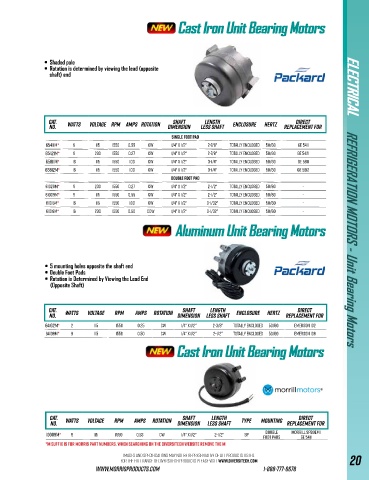

Page 23 - 2025 MORRIS Diversitech HVAC Catalog

Cast Iron Unit Bearing Motors
Cast Iron Unit Bearing Motors

• Shaded pole
• Rotation is determined by viewing the lead (opposite
shaft) end ELECTRICAL

CAT. Watts Voltage RPM Amps Rotation Shaft Length enclosure Hertz Direct
ELECTRICAL
NO. Dimension Less Shaft Replacement For
Single Foot Pad
65411M* 9 115 1550 0.55 CW 1/4" x 1/2" 2-7/8" Totally Enclosed 50/60 GE 5411
65421M* 9 230 1550 0.27 CW 1/4" x 1/2" 2-7/8" Totally Enclosed 50/60 GE 5421
65811M* 16 115 1550 1.00 CW 1/4" x 1/2" 3-1/4" Totally Enclosed 50/60 GE 5811
65812M* 16 115 1550 1.00 CW 1/4" x 1/2" 3-1/4" Totally Enclosed 50/60 GE 5812
Double Foot pad
61029M* 9 230 1550 0.27 CW 1/4" x 1/2" 2-1/2" Totally Enclosed 50/60 -
61009M* 9 115 1550 0.55 CW 1/4" x 1/2" 2-1/2" Totally Enclosed 50/60 -
61015M* 16 115 1550 1.00 CW 1/4" x 1/2" 3-1/32" Totally Enclosed 50/60 -
61018M* 16 230 1550 0.50 CCW 1/4" x 1/2" 3-1/32" Totally Enclosed 50/60 -

Aluminum Unit Bearing MotorsAluminum Unit Bearing Motors REFRIGERATION MOTORS - Unit Bearing Motors

• 5 mounting holes opposite the shaft end
• Double Foot Pads
• Rotation is Determined by Viewing the Lead End
(Opposite Shaft)

CAT. Shaft Length Direct
NO. Watts Voltage RPM Amps Rotation Dimension Less Shaft enclosure Hertz Replacement For
64102M* 2 115 1550 0.25 CW 1/4" x 1/2" 2-3/8" Totally Enclosed 50/60 Emerson 102
64108M* 9 115 1550 0.50 CW 1/4" x 1/2" 2-1/2" Totally Enclosed 50/60 Emerson 108

Cast Iron Unit Bearing Motors
Cast Iron Unit Bearing Motors

CAT. Shaft Length Direct
NO. Watts Voltage RPM Amps Rotation Dimension Less Shaft Type Mounting Replacement For
Double
10009M* 9 115 1550 0.53 CW 1/4" x 1/2" 2-1/2" SP Foot Pads Morrill SPB9EM1
GE 5411
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M
Images and Specifications may not be representative of all products listed.
