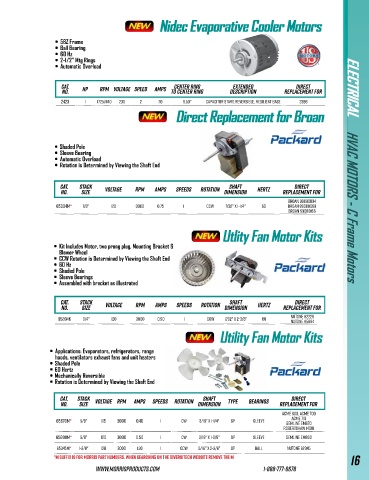

Page 19 - 2025 MORRIS Diversitech HVAC Catalog

Nidec Evaporative Cooler Motors
Nidec Evaporative Cooler Motors

• 56Z Frame
• Ball Bearing
• 60 Hz
• 2-1/2" Mtg Rings
• Automatic Overload

CAT. HP RPM Voltage Speed Amps CENTER RING EXTENDED Direct
NO. TO CENTER RING DESCRIPTION Replacement For ELECTRICAL
2423 1 1725/1140 230 2 7.0 9.50" Capacitor Start, Reversible, Resilient Base 2396
Direct Replacement for BroanDirect Replacement for Broan

ELECTRICAL

• Shaded Pole
• Sleeve Bearing
• Automatic Overload
• Rotation is Determined by Viewing the Shaft End

CAT. Stack Voltage RPM Amps Speeds Rotation SHAFT Hertz Direct
NO. Size DIMENSION Replacement For
Broan 99080094
65094M* 7/8" 120 3000 0.75 1 CCW 7/32" x 1-1/4" 60 Broan 99080099
Broan 99080166 HVAC MOTORS - C Frame Motors

Utlity Fan Motor KitsUtlity Fan Motor Kits

• Kit Includes Motor, two prong plug, Mounting Bracket &
Blower Wheel
• CCW Rotation is Determined by Viewing the Shaft End
• 60 Hz
• Shaded Pole
• Sleeve Bearings
• Assembled with bracket as illustrated

CAT. Stack SHAFT Direct
NO. Size Voltage RPM Amps Speeds Rotation DIMENSION Hertz Replacement For
65894K 3/4" 120 3000 0.90 1 CCW 7/32" x 2-3/8" 60 Nutone 82229
Nutone K5894
Utility Fan Motor KitsUtility Fan Motor Kits

• Applications: Evaporators, refrigerators, range
hoods, ventilators exhaust fans and unit heaters
• Shaded Pole
• 60 Hertz
• Mechanically Reversible
• Rotation is Determined by Viewing the Shaft End

CAT. Stack Voltage RPM Amps Speeds Rotation SHAFT Type BEARINGS Direct
NO. Size DIMENSION Replacement For
Acme 600, Acme 700
Acme 710
65670M* 5/8" 115 3000 0.40 1 CW 3/16" x 1-1/4" SP Sleeve Gemline EM670
Robertshaw 14001
65690M* 5/8" 120 3000 0.50 1 CW 3/16" x 1-3/8" SP Sleeve Gemline EM690

65345M* 1-3/8" 120 3000 1.30 1 CCW 5/16" X 2-3/8" SP Ball Nutone 62345
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M 16
