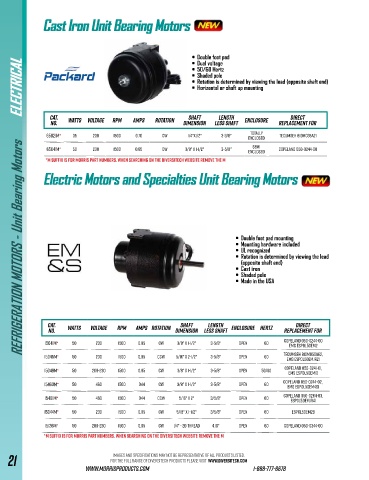

Page 24 - 2025 MORRIS Diversitech HVAC Catalog

Cast Iron Unit Bearing Motors
Cast Iron Unit Bearing Motors

ELECTRICAL ELECTRICAL • Double foot pad
• Dual voltage
• 50/60 Hertz
• Shaded pole
• Rotation is determined by viewing the lead (opposite shaft end)
• Horizontal or shaft up mounting

Direct
CAT.
Length
Shaft
NO. Watts Voltage RPM Amps Rotation Dimension Less Shaft Enclosure Replacement For
Totally
65021M* 35 230 1500 0.70 CW 1/4"X1/2" 3-3/8" Enclosed Tecumseh 810M035A21
REFRIGERATION MOTORS - Unit Bearing Motors
Semi
65041M* 50 230 1500 0.85 CW 3/8" x 1-1/2" 3-5/8" Enclosed Copeland 050-0244-00
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M
Electric Motors and Specialties Unit Bearing MotorsElectric Motors and Specialties Unit Bearing Motors

• Double foot pad mounting
• Mounting hardware included
• UL recognized
• Rotation is determined by viewing the lead
(opposite shaft end)
• Cast iron
• Shaded pole
• Made in the USA

CAT. Watts Voltage RPM Amps Rotation Shaft Length Enclosure Hertz Direct
NO. Dimension Less Shaft Replacement For

15041M* 50 230 1500 0.85 CW 3/8" x 1-1/2" 3-5/8" Open 60 Copeland 050-0244-00
EMS ESPOL50EM2
15045M* 50 230 1500 0.85 CCW 5/16" x 2-1/2" 3-5/8" Open 60 Tecumseh 810M050A62,
EMS ESPOL50EMJR21
15049M* 50 208-230 1500 0.85 CW 3/8" x 1-1/2" 3-5/8" Open 50/60 Copeland 050-0241-01,
EMS ESPOL50EM13
15460M* 50 460 1500 0.44 CW 3/8" X 1-1/2" 3-5/8" Open 60 Copeland 050-0244-02 ,
EMS ESPOL50EM461
15461M* 50 460 1500 0.44 CCW 5/16" X 2" 3/5/8" Open 60 Copeland 050-0264-03,
ESPOL50EMJR41
15044M* 50 230 1500 0.85 CW 5/16" x 1-1/2" 3/5/8" Open 60 ESPOL50EM2B

15126M* 50 208-230 1500 0.85 CW 1/4" - 20 Thread 4.18" Open 60 Copeland 050-0344-00
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M

21 FOR THE FULL RANGE OF DIVERSITECH PRODUCTS PLEASE VISIT www.DIVERSITECH.COM
Images and Specifications may not be representative of all products listed.
www.morrisproducts.com 1-888-777-6678
