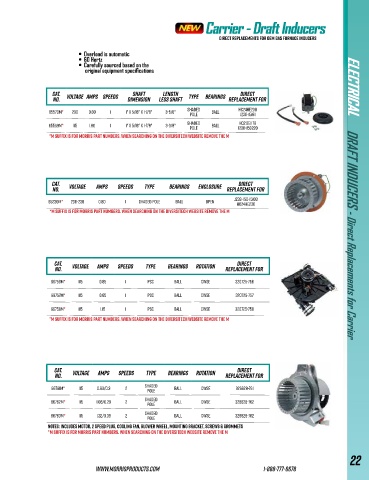

Page 25 - 2025 MORRIS Diversitech HVAC Catalog

Carrier - Draft InducersCarrier - Draft Inducers

Direct Replacements for OEM Gas Furnace Inducers

• Overload is automatic
• 60 Hertz
• Carefully sourced based on the
original equipment specifications

CAT. Voltage AMPS Speeds Shaft Length Type Bearings Direct ELECTRICAL
NO. Dimension Less Shaft Replacement For

65570M* 230 0.80 1 1" x 5/16" x 1-7/8" 3-5/8" Shaded Ball HC24HE230
J238-15161
Pole
HC21ZE117B
ELECTRICAL
65569M* 115 1.80 1 1" x 5/16" x 1-7/8" 3-3/8" Shaded Ball J238-150220
Pole
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M

CAT. Direct
NO. Voltage AMPS Speeds Type Bearings Enclosure Replacement For
65230M* 208-230 0.80 1 Shaded pole Ball Open J238-150-15103
HC24HE230
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M DRAFT INDUCERS - Direct Replacements for Carrier

CAT. Direct
NO. Voltage AMPS Speeds Type Bearings Rotation Replacement For

66756M* 115 0.85 1 pSC Ball CWSE 320725-756

66757M* 115 0.85 1 pSC Ball CWSE 320725-757
66758M* 115 1.15 1 pSC Ball CWSE 320725-758
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M

CAT. Direct
NO. Voltage AMPS Speeds Type Bearings Rotation Replacement For
66761M* 115 0.63/0.3 2 Shaded Ball CWSE 326628-761
Pole
66762M* 115 1.06/0.28 2 Shaded Ball CWSE 326628-762
Pole
66763M* 115 1.32/0.39 2 Shaded Ball CWSE 326628-762
Pole
Notes: Includes Motor, 2 Speed Plug, Cooling Fan, Blower Wheel, Mounting Bracket, Screws & Grommets
*M suffix is for MOrris part numbers. When searching on the Diversitech website remove the M

22

www.morrisproducts.com 1-888-777-6678
