Chapter (4) Network Design

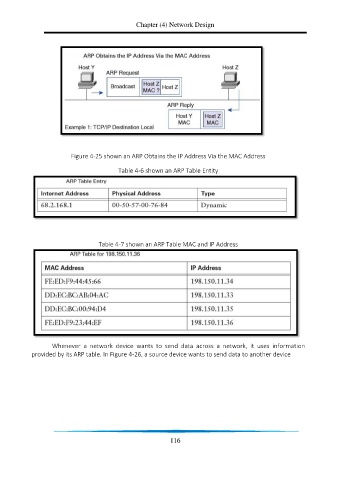

Figure 4-25 shown an ARP Obtains the IP Address Via the MAC Address
Table 4-6 shown an ARP Table Entity
Table 4-7 shown an ARP Table MAC and IP Address
Whenever a network device wants to send data across a network, it uses information
provided by its ARP table. In Figure 4-26, a source device wants to send data to another device
116
