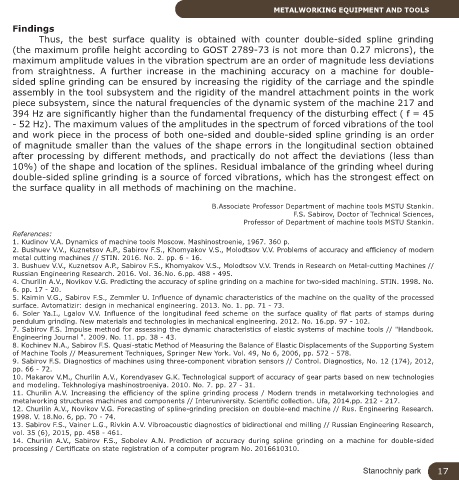

METALWORKING EQUIPMENT AND TOOLS

Findings
Thus, the best surface quality is obtained with counter double-sided spline grinding
(the maximum profile height according to GOST 2789-73 is not more than 0.27 microns), the
maximum amplitude values in the vibration spectrum are an order of magnitude less deviations
from straightness. A further increase in the machining accuracy on a machine for double-
sided spline grinding can be ensured by increasing the rigidity of the carriage and the spindle
assembly in the tool subsystem and the rigidity of the mandrel attachment points in the work
piece subsystem, since the natural frequencies of the dynamic system of the machine 217 and
394 Hz are significantly higher than the fundamental frequency of the disturbing effect ( f = 45
- 52 Hz). The maximum values of the amplitudes in the spectrum of forced vibrations of the tool
and work piece in the process of both one-sided and double-sided spline grinding is an order
of magnitude smaller than the values of the shape errors in the longitudinal section obtained
after processing by different methods, and practically do not affect the deviations (less than
10%) of the shape and location of the splines. Residual imbalance of the grinding wheel during
double-sided spline grinding is a source of forced vibrations, which has the strongest effect on
the surface quality in all methods of machining on the machine.

B.Associate Professor Department of machine tools MSTU Stankin.
F.S. Sabirov, Doctor of Technical Sciences,
Professor of Department of machine tools MSTU Stankin.
References:
1. Kudinov V.A. Dynamics of machine tools Moscow. Mashinostroenie, 1967. 360 p.
2. Bushuev V.V., Kuznetsov A.P., Sabirov F.S., Khomyakov V.S., Molodtsov V.V. Problems of accuracy and efficiency of modern
metal cutting machines // STIN. 2016. No. 2. pp. 6 - 16.
3. Bushuev V.V., Kuznetsov A.P., Sabirov F.S., Khomyakov V.S., Molodtsov V.V. Trends in Research on Metal-cutting Machines //
Russian Engineering Research. 2016. Vol. 36.No. 6.pp. 488 - 495.
4. Churilin A.V., Novikov V.G. Predicting the accuracy of spline grinding on a machine for two-sided machining. STIN. 1998. No.
6. pp. 17 - 20.
5. Kaimin V.G., Sabirov F.S., Zemmler U. Influence of dynamic characteristics of the machine on the quality of the processed
surface. Avtomatizir: design in mechanical engineering. 2013. No. 1. pp. 71 - 73.
6. Soler Ya.I., Lgalov V.V. Influence of the longitudinal feed scheme on the surface quality of flat parts of stamps during
pendulum grinding. New materials and technologies in mechanical engineering. 2012. No. 16.pp. 97 - 102.
7. Sabirov F.S. Impulse method for assessing the dynamic characteristics of elastic systems of machine tools // "Handbook.
Engineering Journal ". 2009. No. 11. pp. 38 - 43.
8. Kochinev N.A., Sabirov F.S. Quasi-static Method of Measuring the Balance of Elastic Displacements of the Supporting System
of Machine Tools // Measurement Techniques, Springer New York. Vol. 49, No 6, 2006, pp. 572 - 578.
9. Sabirov F.S. Diagnostics of machines using three-component vibration sensors // Control. Diagnostics, No. 12 (174), 2012,
pp. 66 - 72.
10. Makarov V.M., Churilin A.V., Korendyasev G.K. Technological support of accuracy of gear parts based on new technologies
and modeling. Tekhnologiya mashinostroeniya. 2010. No. 7. pp. 27 - 31.
11. Churilin A.V. Increasing the efficiency of the spline grinding process / Modern trends in metalworking technologies and
metalworking structures machines and components // Interuniversity. Scientific collection. Ufa, 2014.pp. 212 - 217.
12. Churilin A.V., Novikov V.G. Forecasting of spline-grinding precision on double-end machine // Rus. Engineering Research.
1998. V. 18.No. 6, pp. 70 - 74.
13. Sabirov F.S., Vainer L.G., Rivkin A.V. Vibroacoustic diagnostics of bidirectional end milling // Russian Engineering Research,
vol. 35 (6), 2015, pp. 458 - 461.
14. Churilin A.V., Sabirov F.S., Sobolev A.N. Prediction of accuracy during spline grinding on a machine for double-sided
processing / Certificate on state registration of a computer program No. 2016610310.

Stanochniy park 17
