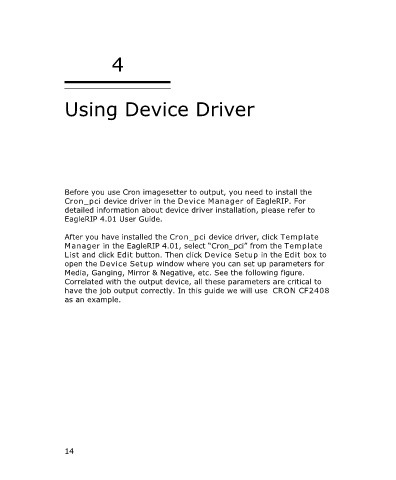

4

Using Device Driver

Before you use Cron imagesetter to output, you need to install the
Cron_pci device driver in the Device Manager of EagleRIP. For
detailed information about device driver installation, please refer to
EagleRIP 4.01 User Guide.
After you have installed the Cron_pci device driver, click Template
Manager in the EagleRIP 4.01, select “Cron_pci” from the Template
List and click Edit button. Then click Device Setup in the Edit box to
open the Device Setup window where you can set up parameters for
Media, Ganging, Mirror & Negative, etc. See the following figure.
Correlated with the output device, all these parameters are critical to
have the job output correctly. In this guide we will use CRON CF2408
as an example.

14
