P. 19

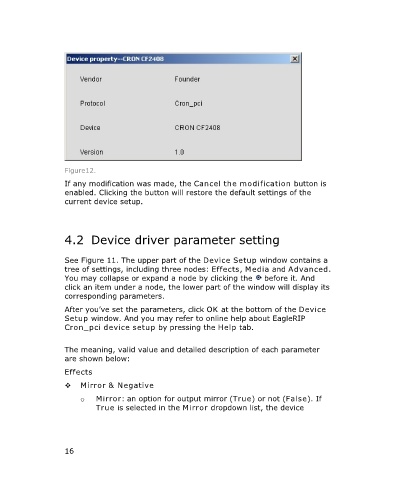

Figure12.
If any modification was made, the Cancel the modification button is
enabled. Clicking the button will restore the default settings of the
current device setup.
4.2 Device driver parameter setting
See Figure 11. The upper part of the Device Setup window contains a
tree of settings, including three nodes: Effects, Media and Advanced.
You may collapse or expand a node by clicking the before it. And
click an item under a node, the lower part of the window will display its
corresponding parameters.
After you’ve set the parameters, click OK at the bottom of the Device
Setup window. And you may refer to online help about EagleRIP
Cron_pci device setup by pressing the Help tab.
The meaning, valid value and detailed description of each parameter
are shown below:
Effects
Mirror & Negative
o Mirror: an option for output mirror (True) or not (False). If
True is selected in the Mirror dropdown list, the device
16
