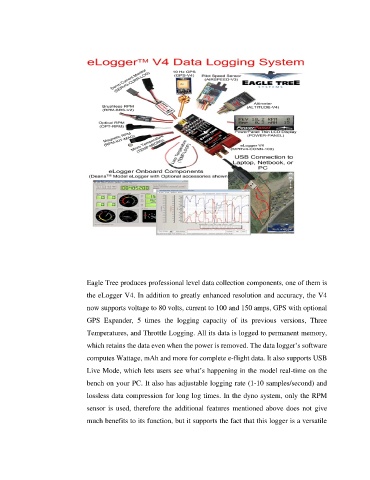

Eagle Tree produces professional level data collection components, one of them is
the eLogger V4. In addition to greatly enhanced resolution and accuracy, the V4

now supports voltage to 80 volts, current to 100 and 150 amps, GPS with optional
GPS Expander, 5 times the logging capacity of its previous versions, Three

Temperatures, and Throttle Logging. All its data is logged to permanent memory,
which retains the data even when the power is removed. The data logger’s software

computes Wattage, mAh and more for complete e-flight data. It also supports USB

Live Mode, which lets users see what’s happening in the model real-time on the
bench on your PC. It also has adjustable logging rate (1-10 samples/second) and

lossless data compression for long log times. In the dyno system, only the RPM
sensor is used, therefore the additional features mentioned above does not give

much benefits to its function, but it supports the fact that this logger is a versatile
