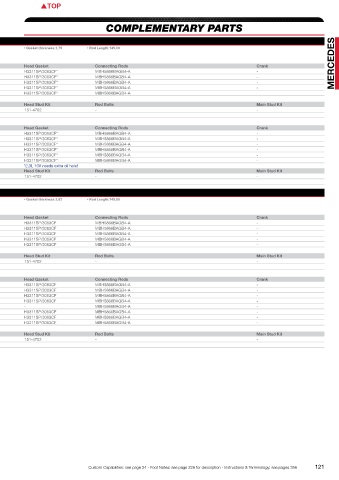

Mercedes PISTONS COMPLEMENTARY PARTS

190 E 2.3 -16
OEM Engine details 2,3 Ltr 16V Engine code:M102.983 • Displacement:2299 cc • Valves:16 • Comp. Ratio:9,7:1-10,5:1 • Head cc’s:57,00 • Gasket thickness:1,75 • Rod Length:145,00
Bore:95,50 • Stroke:80,25 • Block Ht:228,15
C/R with 1,50mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank MERCEDES
KE230M955 * 95,50 Std. 38,90 -10 0,12- 8,5:1 22 9550XX 465 1,B,G,M,P H3311SP/3063CF* MBH5866BAGB4-A -
KE230M9575 * 95,75 0,25 38,90 -10 0,12- 8,5:1 22 9575XX 470 1,B,G,M,P H3311SP/3063CF* MBH5866BAGB4-A -
KE230M96 * 96,00 0,50 38,90 -10 0,12- 8,5:1 22 9600XX 474 1,B,G,M,P H3311SP/3063CF* MBH5866BAGB4-A -
KE230M9625 * 96,25 0,75 38,90 -10 0,12- 8,5:1 22 9625XX 476 1,B,G,M,P H3311SP/3063CF* MBH5866BAGB4-A -
KE230M965 * 96,50 1,00 38,90 -10 0,12- 8,5:1 22 9650XX 479 1,B,G,M,P H3311SP/3063CF* MBH5866BAGB4-A
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 151-4702 - -
KING - - -
C/R with 1,50mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
325792C * 96,00 0,50 38,90 3,1 0,12- 9,8:1 22 XH9600 466 B,G,M,P H3311SP/3063CF* MBH5866BAGB4-A -
346671C * 96,50 1,00 38,90 3,1 0,12- 9,9:1 22 9650XX 467 B,G,M,P H3311SP/3063CF* MBH5866BAGB4-A -
336213C * 97,00 1,50 38,90 3,1 0,12- 10,0:1 22 XH9700 477 B,G,M,P H3311SP/3063CF* MBH5866BAGB4-A -
359457C * 96,00 0,50 38,90 12 0,12- 11,3:1 22 XH9600 480 B,G,M,P H3311SP/3063CF* MBH5866BAGB4-A -
359457C-965 * 96,50 1,00 38,90 12 0,12- 11,3:1 22 9650XX - B,G,M,P H3311SP/3063CF* MBH5866BAGB4-A -
359457C-97 * 97,00 1,50 38,90 12 0,12- 11,4:1 22 XH9700 - B,G,M,P H3311SP/3063CF* MBH5866BAGB4-A -
* For 149,00 mm rod *2,3L 16V needs extra oil hole!
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 151-4702 - -
KING - - -

190 E 2.5-16
OEM Engine details 2,5 Ltr 16V Engine code:M102.990 • Displacement:2499 cc • Valves:16 • Comp. Ratio:9,7:1 • Head cc’s:57,00 • Gasket thickness:1,82 • Rod Length:149,00
Bore:95,50 • Stroke:87,20 • Block Ht:226,70
C/R with 1,50mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE228M955 95,50 Std. 34,10 -10 0 9,0:1 22 9550XX 398 1,B,F,M,P H3311SP/3063CF MBH5866BAGB4-A -
KE228M9575 95,75 0,25 34,10 -10 0 9,0:1 22 9575XX 401 1,B,F,M,P H3311SP/3063CF MBH5866BAGB4-A -
KE228M96 96,00 0,50 34,10 -10 0 9,0:1 22 9600XX 406 1,B,F,P H3311SP/3063CF MBH5866BAGB4-A -
KE228M9625 96,25 0,75 34,10 -10 0 9,0:1 22 9625XX 410 1,B,F,M,P H3311SP/3063CF MBH5866BAGB4-A -
KE228M965 96,50 1,00 34,10 -10 0 9,0:1 22 9650XX 413 1,B,F,P H3311SP/3063CF MBH5866BAGB4-A -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 151-4702 - -
KING - - -
C/R with 1,50mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
341054C 96,00 0,50 34,09 -10 0,01- 9,0:1 22 9600XX 444 B,I,M,P,S H3311SP/3063CF MBH5866BAGB4-A -
332010C 96,00 0,50 34,09 3,1 0,01- 10,7:1 22 XH9600 440 B,M,P,R H3311SP/3063CF MBH5866BAGB4-A -
358548C 96,50 1,00 34,09 3,1 0,01- 10,8:1 22 XX9650 441 B,M,P,R H3311SP/3063CF MBH5866BAGB4-A -
337337C 97,00 1,50 34,09 3,1 0,01- 10,9:1 22 XH9700 451 B,M,P,R H3311SP/3063CF MBH5866BAGB4-A -
354532C 97,50 2,00 34,09 3,1 0,01- 11,0:1 22 XH9750 456 B,M,P,R - MBH5866BAGB4-A -
TBA 96,00 0,50 34,09 12 0,01- 12,2:1 22 XX9600 - B,M,P,R H3311SP/3063CF MBH5866BAGB4-A -
TBA 96,50 1,00 34,09 12 0,01- 12,4:1 22 XX9650 - B,M,P,R H3311SP/3063CF MBH5866BAGB4-A -
TBA 97,00 1,50 34,09 12 0,01- 12,5:1 22 XH9700 - B,M,P,R H3311SP/3063CF MBH5866BAGB4-A -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 151-4702 - -
KING - - -
