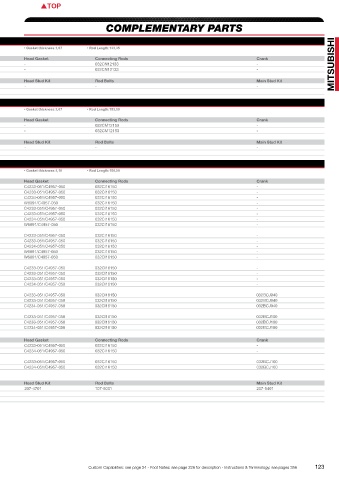

Mitsubishi PISTONS COMPLEMENTARY PARTS

4G93 as in Lancer
OEM Engine details 1,8 Ltr 16V Engine code:4G93 • Displacement:1834 cc • Valves:16 • Comp. Ratio:9,5:1 • Head cc’s:47,00 • Gasket thickness:1,07 • Rod Length:133,35
Bore:81,00 • Stroke:89,00 • Block Ht:208,75
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K683M815AP 81,50 0,50 30,25 -2,5 FT 0,65- 9,0:1 19 8150XX - 1,M - 032CN12133 - MITSUBISHI
K683M82AP 82,00 1,00 30,25 -2,5 FT 0,65- 9,0:1 19 8200XX - 1,M - 032CN12133 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B8036H(0,25) 5M8037H(0,25) 1T8037 - - -
KING CR4119XP MB5176XP TW 143AM
4G94 as in Lancer
OEM Engine details 2,0 Ltr 16V Engine code:4G94 • Displacement:1999 cc • Valves:16 • Comp. Ratio:9,5:1 • Head cc’s:49,00 • Gasket thickness:1,07 • Rod Length:153,00
Bore:81,50 • Stroke:95,80 • Block Ht:231,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K683M815AP 81,50 Std. 30,25 -2,5 FT 0,15 9,1:1 19 8150XX - 1,M - 032CM12153 -
K683M82AP 82,00 0,50 30,25 -2,5 FT 0,15 9,1:1 19 8200XX - 1,M - 032CM12153 -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B8050H(HX/0,25) 5M8037H(0,25) 1T8037 - - -
KING CR4607XP MB5176XP -
4G63 DSM GEN I (6-bolt)
OEM Engine details 2,0 Ltr 16V Engine code:4G63 6-bolt • Displacement:1997 cc • Valves:16 • Comp. Ratio:8,3:1 • Head cc’s:47,00 • Gasket thickness:1,10 • Rod Length:150,00
Bore:85,00 • Stroke:88,00 • Block Ht:229,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K559M85 85,00 Std. 35,00 -17 0 8,3:1 21 8500XX 324 1,M C4233-051/C4957-050 032CI16150 -
K559M855 85,50 0,50 35,00 -17 0 8,3:1 21 8550XX 332 1 C4233-051/C4957-050 032CI16150 -
K559M86 86,00 1,00 35,00 -17 0 8,3:1 21 8600XX 340 1,M C4234-051/C4957-050 032CI16150 -
K559M865 86,50 1,50 35,00 -17 0 8,3:1 21 8650XX 348 1,M W6091/C4957-050 032CI16150 -
K560M85 85,00 Std. 35,00 -10 0 9,0:1 21 8500XX 343 1,M C4233-051/C4957-050 032CI16150 -
K560M855 85,50 0,50 35,00 -10 0 9,0:1 21 8550XX 349 1 C4233-051/C4957-050 032CI16150 -
K560M86 86,00 1,00 35,00 -10 0 9,0:1 21 8600XX 361 1,M C4234-051/C4957-050 032CI16150 -
K560M865 86,50 1,50 35,00 -10 0 9,0:1 21 8650XX 369 1,M W6091/C4957-050 032CI16150 -
1400HD* (5,72 mm wall tool steel pins)
K625M85AP 85,00 Std. 35,00 -14 0 8,5:1 21 8500XX 341 1,M C4233-051/C4957-050 032CI16150 -
K625M855AP 85,50 0,50 35,00 -14 0 8,5:1 21 8550XX 348 1 C4233-051/C4957-050 032CI16150 -
K625M86AP 86,00 1,00 35,00 -14 0 8,5:1 21 8600XX 350 1,M C4234-051/C4957-050 032CI16150 -
K625M865AP 86,50 1,50 35,00 -14 0 8,5:1 21 8650XX 357 1,M W6091/C4957-050 032CI16150 -
K625M87AP 87,00 2,00 35,00 -14 0 8,5:1 21 8700XX 359 1,M W6091/C4957-050 032CI16150 -
E85 Series 1400HD* ( 5,72 mm wall tool steel pins)
K662M85AP 85,00 Std. 35,00 1 0 10,5:1 21 8500XX 363 1,M C4233-051/C4957-050 032CI16150 -
K662M8525AP 85,25 0,25 35,00 1 0 10,5:1 21 8525XX 366 1,M C4233-051/C4957-050 032CI16150 -
K662M855AP 85,50 0,50 35,00 1 0 10,5:1 21 8550XX 370 1,M C4233-051/C4957-050 032CI16150 -
K662M86AP 86,00 1,00 35,00 1 0 10,5:1 21 8600XX 375 1 C4234-051/C4957-050 032CI16150 -
For stroker crank 94,00 mm 1400HD* (5,72 mm wall tool steel pins)
KE239M85 85,00 Std. 32,00 -14 0 9,1:1 21 8500XX 323 1,M C4233-051/C4957-050 032CI16150 032BCJ940
KE239M855 85,50 0,50 32,00 -14 0 9,1:1 21 8550XX 326 1,M C4233-051/C4957-050 032CI16150 032BCJ940
KE239M86 86,00 1,00 32,00 -14 0 9,1:1 21 8600XX 330 1,M C4234-051/C4957-050 032CI16150 032BCJ940
For stroker crank 100,00 mm
K571M85 85,00 Std. 28,70 -21 0,30- 8,8:1 21 8500XX 284 1,M,Q C4233-051/C4957-050 032CI16150 032BCJ100
K571M855 85,50 0,50 28,70 -21 0,30- 8,8:1 21 8550XX 289 1,M,Q C4233-051/C4957-050 032CI16150 032BCJ100
K571M86 86,00 1,00 28,70 -21 0,30- 8,8:1 21 8600XX 296 1,Q C4234-051/C4957-050 032CI16150 032BCJ100
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
208478 85,50 0,50 34,72 -13,2 0,28- 8,5:1 21 JG2704-3366 317 PS,R,T C4233-051/C4957-050 032CI16150 -
253995 86,00 1,00 34,72 -14 0,28- 8,5:1 21 JG2804-3386 319 PS,R,T C4234-051/C4957-050 032CI16150 -
For stroker crank 100,00 mm
270665 85,50 0,50 28,70 -22 0,30- 8,5:1 21 JG1004-3366 285 M,R,T C4233-051/C4957-050 032CI16150 032BCJ100
270668 86,00 1,00 28,70 -22 0,30- 8,5:1 21 JG1004-3386 292 M,R,T C4234-051/C4957-050 032CI16150 032BCJ100
* 1400HD Strutted Forging/HD2 Asymmetrical Gasported Forging

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1146H (->’92) 5M1144H (->’92) - 207-4701 107-6001 207-5401
KING CR4120XP (->’92) MB5227XP (->’92) -
CR4120XPC (->’92) - -

122 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 123
