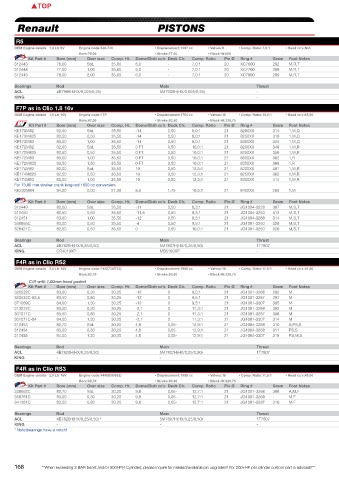

Page 167 - EA20_LR

TOP TOP

Renault PISTONS COMPLEMENTARY PARTS

R5
OEM Engine details 1,4 Ltr 8V Engine code:840-730 • Displacement:1397 cc • Valves:8 • Comp. Ratio:7,0:1 • Head cc’s:N/A • Gasket thickness:1,92 • Rod Length:128,00
Bore:76,00 • Stroke:77,00 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank RENAULT
312443 76,00 Std, 35,60 6,0 - 7,0:1 20 XC7600 282 M,R,T RN1004-071 RE-R5-S-65039S-00(4x) -
312444 77,00 1,00 35,60 6,0 - 7,0:1 20 XC7700 289 M,R,T RN1004-071 RE-R5-S-65039S-00(4x) -
312445 78,00 2,00 35,60 6,0 - 7,0:1 20 XC7800 299 M,R,T RN1006-071 RE-R5-S-65039S-00(4x) -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B7906H(HX/0,025/0,25) 5M7909H(HX/0,025/0,25) - - 216-6302 -
KING - - -
F7P as in Clio 1.8 16v
OEM Engine details 1,8 Ltr 16V Engine code:F7P • Displacement:1764 cc • Valves:16 • Comp. Ratio:10,0:1 • Head cc’s:45,00 • Gasket thickness:1,27 • Rod Length:144,00
Bore:82,00 • Stroke:83,50 • Block Ht:220,75
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE173M82 82,00 Std. 35,50 -14 0,50 8,0:1 21 8200XX 314 1,M,Q C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
KE173M825 82,50 0,50 35,50 -14 0,50 8,0:1 21 8250XX 318 1,M,Q C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
KE173M83 83,00 1,00 35,50 -14 0,50 8,0:1 21 8300XX 325 1,M,Q C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
KE172M82 82,00 Std. 35,50 0 FT 0,50 10,0:1 21 8200XX 349 1,M,R C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
KE172M825 82,50 0,50 35,50 0 FT 0,50 10,0:1 21 8250XX 356 1,M,R C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
KE172M83 83,00 1,00 35,50 0 FT 0,50 10,0:1 21 8300XX 362 1,R C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
KE172M835 83,50 1,50 35,50 0 FT 0,50 10,0:1 21 8350XX 369 1,R C4540-051/338248R 037DZ16144 / R-REN-001-I C-REN-001UL
KE174M82 82,00 Std. 35,50 10 0,50 12,3:1 21 8200XX 401 1,M,R C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
KE174M825 82,50 0,50 35,50 10 0,50 12,3:1 21 8250XX 362 1,M,R C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
KE174M83 83,00 1,00 35,50 10 0,50 12,3:1 21 8300XX 414 1,M,R C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
For 73,00 mm stroker crank long rod 1600 cc conversion
KE232M84 84,00 2,00 27,00 8,3 1,75 10,5:1 21 8400XX 265 1,M C4540-051/338248R 043DQ16159 -

Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
312449 82,00 Std. 35,50 -11 0,50 8,3:1 21 JG1004-3228 307 M,S,T RN1002-051 037DZ16144 / R-REN-001-I C-REN-001UL
312450 82,50 0,50 35,50 -11,5 0,50 8,3:1 21 JG1004-3250 312 M,S,T RN1002-051 037DZ16144 / R-REN-001-I C-REN-001UL
312451 83,00 1,00 35,50 -12 0,50 8,3:1 21 JG1004-3268 314 M,S,T RN1002-051 037DZ16144 / R-REN-001-I C-REN-001UL
349865C 83,00 0,50 35,50 -4 0,50 9,5:1 21 JG1001-3250 328 M,S,T RN1002-051 037DZ16144 / R-REN-001-I C-REN-001UL
328421C 82,50 0,50 35,50 0 0,50 10,0:1 21 JG1001-3250 326 M,S,T RN1002-051 037DZ16144 / R-REN-001-I C-REN-001UL
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B7820H(HX/0,25/0,50) 5M7807H(HX/0,25/0,50) 1T7807 - 216-6301 -
KING CR4019XP MB5180XP -

F4R as in Clio RS2
OEM Engine details 2,0 Ltr 16V Engine code:F4R(730/732) • Displacement:1998 cc • Valves:16 • Comp. Ratio:11,5:1 • Head cc’s:41,00 • Gasket thickness:0,70 • Rod Length:144,00
Bore:82,70 • Stroke:93,00 • Block Ht:220,75
C/R with 1,00mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
320532C 83,00 0,30 30,25 -12 0 9,5:1 21 JG1001-3268 292 M C4518-040 037DZ16144 / R-REN-001-I C-REN-001UL
320532C-83,5 83,50 0,80 30,25 -12 0 9,5:1 21 JG1001-3287 297 M C4519-040 037DZ16144 / R-REN-001-I C-REN-001UL
371089C 84,00 1,30 30,25 -12 0 9,5:1 21 JG1001-3307 305 M C4519-040 037DZ16144 / R-REN-001-I C-REN-001UL
313072C 83,00 0,30 30,25 -2,1 0 11,3:1 21 JG1001-3268 302 M C4518-040 037DZ16144 / R-REN-001-I C-REN-001UL
301071C 83,50 0,80 30,25 -2,1 0 11,3:1 21 JG1001-3287 308 M C4519-040 037DZ16144 / R-REN-001-I C-REN-001UL
301071C-84 84,00 1,30 30,25 -2,1 0 11,3:1 21 JG1001-3307 314 M C4519-040 037DZ16144 / R-REN-001-I C-REN-001UL
312453 82,70 Std. 30,20 4,8 0,05- 12,9:1 21 JG1004-3268 310 A,PS,S C4518-040 037DZ16144 / R-REN-001-I C-REN-001UL
312454 83,00 0,30 30,20 4,8 0,05- 12,9:1 21 JG1004-3268 311 PS,S C4519-040 037DZ16144 / R-REN-001-I C-REN-001UL
312455 84,00 1,30 30,20 4,8 0,05- 12,9:1 21 JG1004-3307 319 PS,M,S C4519-040 037DZ16144 / R-REN-001-I C-REN-001UL

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B7820H(HX/0,25/0,50) 5M7807H(HX/0,25/0,50) 1T7807 216-4301 216-6301 216-5401
KING - - -
F4R as in Clio RS3
OEM Engine details 2,0 Ltr 16V Engine code:F4R(830/832) • Displacement:1998 cc • Valves:16 • Comp. Ratio:11,0:1 • Head cc’s:45,00 • Gasket thickness:0,70 • Rod Length:144,00
Bore:82,70 • Stroke:93,00 • Block Ht:220,75
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
338662C 82,70 Std. 30,20 9,8 0,05- 12,7:1 21 JG1001-3268 308 A,M,F C4518-027 037DZ16144 / R-REN-001-I C-REN-001UL
358781C 83,00 0,30 30,20 9,8 0,05- 12,7:1 21 JG1001-3268 - M,F C4518-027 037DZ16144 / R-REN-001-I C-REN-001UL
341261C 83,50 0,80 30,20 9,8 0,05- 12,7:1 21 JG1001-3287 316 M,F C4519-027 037DZ16144 / R-REN-001-I C-REN-001UL
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B7820H(HX/0,25/0,50) * 5M7807H(HX/0,25/0,50) 1T7807 216-4301 216-6301 216-5401
KING - - -
* Note:bearings have a notch!

168 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 169
