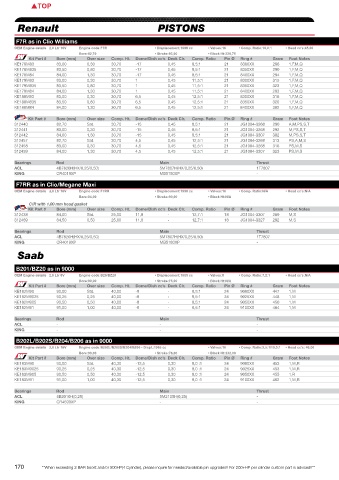

Renault PISTONS COMPLEMENTARY PARTS

F7R as in Clio Williams
OEM Engine details 2,0 Ltr 16V Engine code:F7R • Displacement:1998 cc • Valves:16 • Comp. Ratio:10,0:1 • Head cc’s:45,00 • Gasket thickness:1,25 • Rod Length:144,00
Bore:82,70 • Stroke:93,00 • Block Ht:220,75
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank RENAULT
KE178M83 83,00 0,30 30,70 -17 0,45 8,5:1 21 8300XX 286 1,F,M,Q C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
KE178M835 83,50 0,80 30,70 -17 0,45 8,5:1 21 8350XX 290 1,F,M,Q C4540-051/338248R 037DZ16144 / R-REN-001-I C-REN-001UL
KE178M84 84,00 1,30 30,70 -17 0,45 8,5:1 21 8400XX 294 1,F,M,Q C4540-051/338248R 037DZ16144 / R-REN-001-I C-REN-001UL
KE179M83 83,00 0,30 30,70 1 0,45 11,5:1 21 8300XX 315 1,F,M,Q C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
KE179M835 83,50 0,80 30,70 1 0,45 11,5:1 21 8350XX 323 1,F,M,Q C4540-051/338248R 037DZ16144 / R-REN-001-I C-REN-001UL
KE179M84 84,00 1,30 30,70 1 0,45 11,5:1 21 8400XX 293 1,F,M,Q C4540-051/338248R 037DZ16144 / R-REN-001-I C-REN-001UL
KE180M83 83,00 0,30 30,70 6,5 0,45 12,5:1 21 8300XX 316 1,F,M,Q C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
KE180M835 83,50 0,80 30,70 6,5 0,45 12,5:1 21 8350XX 320 1,F,M,Q C4540-051/338248R 037DZ16144 / R-REN-001-I C-REN-001UL
KE180M84 84,00 1,30 30,70 6,5 0,45 12,5:1 21 8400XX 302 1,F,M,Q C4540-051/338248R 037DZ16144 / R-REN-001-I C-REN-001UL

Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
312440 82,70 Std. 30,70 -15 0,45 8,5:1 21 JG1004-3268 290 A,M,PS,S,T C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
312441 83,00 0,30 30,70 -15 0,45 8,5:1 21 JG1004-3268 292 M,PS,S,T C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
312442 84,00 1,30 30,70 -15 0,45 8,5:1 21 JG1004-3307 302 M,PS,S,T C4540-051/338248R 037DZ16144 / R-REN-001-I C-REN-001UL
312457 82,70 Std. 30,70 4,5 0,45 12,5:1 21 JG1004-3268 313 PS,A,M,S C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
312458 83,00 0,30 30,70 4,5 0,45 12,5:1 21 JG1004-3268 316 PS,M,S C4539-051/338247R 037DZ16144 / R-REN-001-I C-REN-001UL
312459 84,00 1,30 30,70 4,5 0,45 12,5:1 21 JG1004-3307 323 PS,M,S C4540-051/338248R 037DZ16144 / R-REN-001-I C-REN-001UL
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B7820H(HX/0,25/0,50) 5M7807H(HX/0,25/0,50) 1T7807 - 216-6301 -
KING CR4019XP MB5180XP -
F7RR as in Clio/Megane Maxi
OEM Engine details 2,0 Ltr 16V Engine code:F7RR • Displacement:1998 cc • Valves:16 • Comp. Ratio:N/A • Head cc’s:N/A • Gasket thickness:N/A • Rod Length:150,00
Bore:84,00 • Stroke:90,00 • Block Ht:N/A
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
312438 84,00 Std. 25,00 11,8 - 12,7:1 18 JG1004-3307 289 M,S C4540-051/338248R - -
312489 84,50 0,50 25,00 11,8 - 12,7:1 18 JG1004-3327 292 M,S C4540-051/338248R - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B7820H(HX/0,25/0,50) 5M7807H(HX/0,25/0,50) 1T7807 - - -
KING CR4019XP MB5180XP -

Saab

B201/BZ20 as in 9000
OEM Engine details 2,0 Ltr 8V Engine code:B20/BZ20 • Displacement:1985 cc • Valves:8 • Comp. Ratio:7,2:1 • Head cc’s:N/A • Gasket thickness:1,40 • Rod Length:134,00 SAAB
Bore:90,00 • Stroke:78,00 • Block Ht:N/A
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE182M90 90,00 Std. 40,00 -8 - 8,5:1 24 9000XX 447 1,M - - -
KE182M9025 90,25 0,25 40,00 -8 - 8,5:1 24 9025XX 448 1,M - - -
KE182M905 90,50 0,50 40,00 -8 - 8,5:1 24 9050XX 450 1,M - - -
KE182M91 91,00 1,00 40,00 -8 - 8,5:1 24 9100XX 464 1,M - - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - -
KING - - -
B202L/B202S/B204/B206 as in 9000
OEM Engine details 2,0 Ltr 16V Engine code:B202L/B202S/B204/B206 • Displ.:1985 cc • Valves:16 • Comp. Ratio:9,5:1/10,0:1 • Head cc’s: 46,00 • Gasket thickness:1,30 • Rod Length:153,00
Bore:90,00 • Stroke:78,00 • Block Ht:232,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
KE183M90 90,00 Std. 40,30 -12,5 0,30 8,0 :1 24 9000XX 453 1,M,R C4974-051 - -
KE183M9025 90,25 0,25 40,30 -12,5 0,30 8,0 :1 24 9025XX 453 1,M,R C4974-051 - -
KE183M905 90,50 0,50 40,30 -12,5 0,30 8,0 :1 24 9050XX 455 1,R C4974-051 - -
KE183M91 91,00 1,00 40,30 -12,5 0,30 8,0 :1 24 9100XX 462 1,M,R C4974-051 - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B2010H(0,25) 5M2105H(0,25) - - - -
KING CR4599XP - -

170 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 171
