Part IX: Working with Characters
with the walk cycle, creating a slower run cycle. You also can open the Curve Editor to change the shape of
the weight curves.

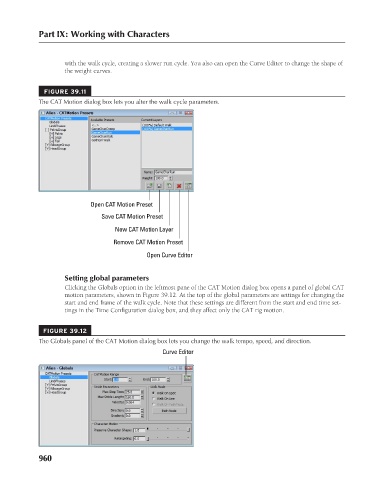

FIGURE 39.11
The CAT Motion dialog box lets you alter the walk cycle parameters.

Open CAT Motion Preset
Save CAT Motion Preset
New CAT Motion Layer
Remove CAT Motion Preset
Open Curve Editor

Setting global parameters
Clicking the Globals option in the leftmost pane of the CAT Motion dialog box opens a panel of global CAT
motion parameters, shown in Figure 39.12. At the top of the global parameters are settings for changing the
start and end frame of the walk cycle. Note that these settings are different from the start and end time set-
tings in the Time Configuration dialog box, and they affect only the CAT rig motion.

FIGURE 39.12
The Globals panel of the CAT Motion dialog box lets you change the walk tempo, speed, and direction.
Curve Editor

960
