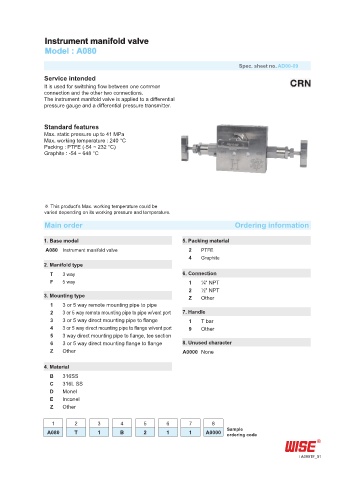

Instrument manifold valve
Model : A080

Spec. sheet no. AD00-09
Service intended
It is used for switching flow between one common
connection and the other two connections.
The instrument manifold valve is applied to a differential
pressure gauge and a differential pressure transmitter.

Standard features
Max. static pressure up to 41 MPa
Max. working temperature : 240 °C
Packing : PTFE (-54 ~ 232 °C)
Graphite : -54 ~ 648 °C

œ This product’s Max. working temperature could be
varied depending on its working pressure and temperature.

Main order Ordering information

1. Base model 5. Packing material
A080 Instrument manifold valve 2 PTFE
4 Graphite
2. Manifold type
T 3 way 6. Connection
F 5 way 1 ¼" NPT
2 ½" NPT
3. Mounting type Z Other
1 3 or 5 way remote mounting pipe to pipe
2 3 or 5 way remote mounting pipe to pipe w/vent port 7. Handle
3 3 or 5 way direct mounting pipe to flange 1 T bar
4 3 or 5 way direct mounting pipe to flange w/vent port 9 Other
5 3 way direct mounting pipe to flange, tee section
6 3 or 5 way direct mounting flange to flange 8. Unused character
Z Other A0000 None

4. Material
B 316SS
C 316L SS
D Monel
E Inconel
Z Other

1 2 3 4 5 6 7 8
Sample
A080 T 1 B 2 1 1 A0000 ordering code

A080TF_01
