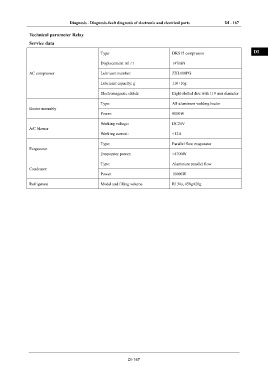

Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts DI - 167
Technical parameter Relay IN
Service data
DI
Type: DKS15 compressor
Displacement: ml / r 147ml/r
EG
AC compressor Lubricant number: ZXL100PG
Lubricant capacity: g 110±10g TR
Electromagnetic clutch: Eight-slotted disc with 119 mm diameter
AX
Type: All-aluminum welding heater
Heater assembly
Power: 6000W
FR
Working voltage: DC24V
A/C blower
Working current: ≤12A ST
Type: Parallel flow evaporator
Evaporator
BR
Evaporator power: >4700W
Type: Aluminum parallel flow
Condenser BW
Power: 10000W
Refrigerant Model and filling volume R134a, 450g±20g EL
DI-167
