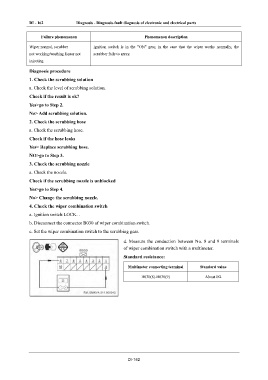

Page 216 - Foton Workshop Manual - Auman EST-M

DI - 162 Diagnosis - Diagnosis-fault diagnosis of electronic and electrical parts

Failure phenomenon Phenomenon description
Wiper normal, scrubber Ignition switch is in the "ON" gear, in the case that the wiper works normally, the
not working/washing liquor not scrubber fails to spray.
injecting

Diagnosis procedure
1. Check the scrubbing solution

a. Check the level of scrubbing solution.
Check if the result is ok?
Yes>go to Step 2.
No> Add scrubbing solution.

2. Check the scrubbing hose

a. Check the scrubbing hose.
Check if the hose leaks

Yes> Replace scrubbing hose.
NO>go to Step 3.
3. Check the scrubbing nozzle

a. Check the nozzle.
Check if the scrubbing nozzle is unblocked

Yes>go to Step 4.
No> Change the scrubbing nozzle.
4. Check the wiper combination switch

a. Ignition switch:LOCK. .
b. Disconnect the connector B030 of wiper combination switch.

c. Set the wiper combination switch to the scrubbing gear.
d. Measure the conduction between No. 8 and 9 terminals
of wiper combination switch with a multimeter.
Standard resistance:

Multimeter connecting terminal Standard value

B030(8)-B030(9) About 0Ω

DI-162
