Page 1060 - Workshop Manual - Aumark (BJ1051)
P. 1060

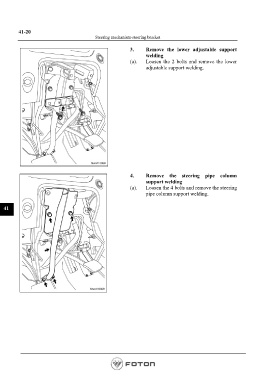

41-20
Steering mechanism-steering bracket
3. Remove the lower adjustable support
welding
(a). Loosen the 2 bolts and remove the lower
adjustable support welding.
4. Remove the steering pipe column
support welding
(a). Loosen the 4 bolts and remove the steering
pipe column support welding.
41
Page 1060
