41-19

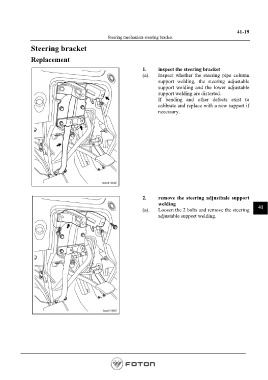

Steering mechanism-steering bracket
Steering bracket
Replacement
1. inspect the steering bracket
(a). Inspect whether the steering pipe column
support welding, the steering adjustable
support welding and the lower adjustable
support welding are distorted.
If bending and other defects exist to
calibrate and replace with a new support if
necessary.
2. remove the steering adjustbale support
welding
(a). Loosen the 2 bolts and remove the steering 41
adjustable support welding.
