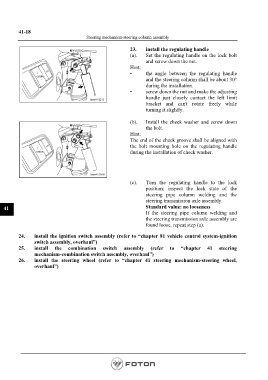

41-18
Steering mechanism-steering column assembly

23. install the regulating handle
(a). Set the regulating handle on the lock bolt
and screw down the nut.
Hint:
• the angle between the regulating handle
cruise
and the steering column shall be about 30°
during the installation.
• screw down the nut and make the adjusting
handle just closely contact the left limit
bracket and can't rotate freely while
turning it slightly.

(b). Install the check washer and screw down
the bolt.
Hint:
The end of the check groove shall be aligned with
the bolt mounting hole on the regulating handle
cruise during the installation of check washer.

(c). Turn the regulating handle to the lock
position; inspect the lock state of the
steering pipe column welding and the
steering transmission axle assembly.
41 Standard value: no looseness
If the steering pipe column welding and
the steering transmission axle assembly are
found loose, repeat step (a).
24. install the ignition switch assembly (refer to “chapter 81 vehicle control system-ignition
switch assembly, overhaul”)
25. install the combination switch assembly (refer to “chapter 41 steering
mechanism-combination switch assembly, overhaul”)
26. install the steering wheel (refer to “chapter 41 steering mechanism-steering wheel,
overhaul”)
