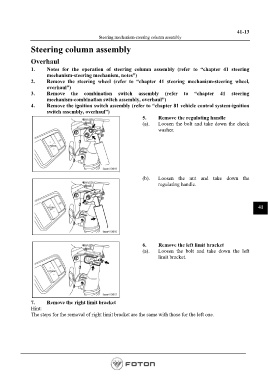

41-13
                                             Steering mechanism-steering column assembly
               Steering column assembly


               Overhaul
               1.     Notes for  the operation of steering column assembly  (refer to “chapter 41 steering
                      mechanism-steering mechanism, notes”)
               2.     Remove the steering  wheel (refer to “chapter 41 steering mechanism-steering wheel,
                      overhaul”)
               3.     Remove the combination  switch assembly  (refer to “chapter  41 steering
                      mechanism-combination switch assembly, overhaul”)
               4.     Remove the ignition switch assembly (refer to “chapter 81 vehicle control system-ignition
                      switch assembly, overhaul”)
                                                                5.     Remove the regulating handle
                                                                (a).   Loosen the bolt and take down the check
                                                                       washer.



                      cruise






                                                                (b).   Loosen the nut and take down the
                                                                       regulating handle.





                      cruise                                                                                        41








                                                                6.     Remove the left limit bracket
                                                                (a).   Loosen the bolt and take down the left
                                                                       limit bracket.


                      cruise







               7.     Remove the right limit bracket
               Hint:
               The steps for the removal of right limit bracket are the same with those for the left one.
