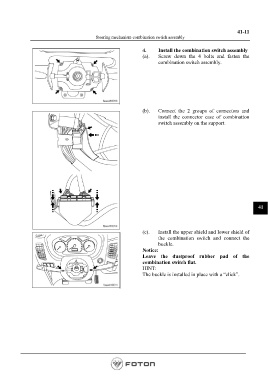

Page 1051 - Workshop Manual - Aumark (BJ1051)
P. 1051
41-11
Steering mechanism-combination swtich assembly
4. Install the combination switch assembly
(a). Screw down the 4 bolts and fasten the
combination switch assembly.
(b). Connect the 2 groups of connectors and
install the connector case of combination
switch assembly on the support.
41
(c). Install the upper shield and lower shield of
the combination switch and connect the
buckle.
Notice:
Leave the dustproof rubber pad of the
combination switch flat.
HINT:
The buckle is installed in place with a “click”.
