41-9
Steering mechanism-combination swtich assembly

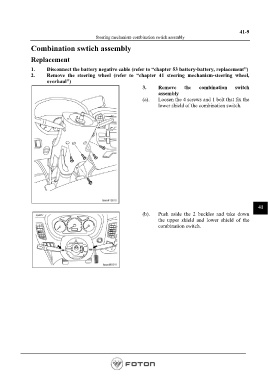

Combination swtich assembly

Replacement

1. Disconnect the battery negative cable (refer to “chapter 53 battery-battery, replacement”)
2. Remove the steering wheel (refer to “chapter 41 steering mechanism-steering wheel,
overhaul”)
3. Remove the combination switch
assembly
(a). Loosen the 4 screws and 1 bolt that fix the
lower shield of the combination switch.

41
(b). Push aside the 2 buckles and take down
the upper shield and lower shield of the
combination switch.
