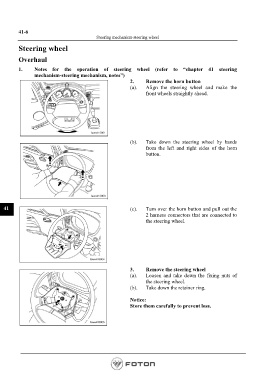

41-6
Steering mechanism-steering wheel
Steering wheel
Overhaul
1. Notes for the operation of steering wheel (refer to “chapter 41 steering
mechanism-steering mechanism, notes”)
2. Remove the horn button
(a). Align the steering wheel and make the
front wheels straightly ahead.
(b). Take down the steering wheel by hands
from the left and right sides of the horn
button.
41 (c). Turn over the horn button and pull out the
2 harness connectors that are connected to
the steering wheel.
3. Remove the steering wheel
(a). Loosen and take down the fixing nuts of
the steering wheel.
(b). Take down the retainer ring.
Notice:
Store them carefully to prevent loss.
