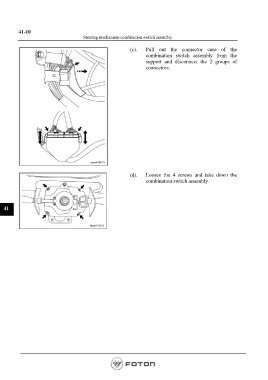

Page 1050 - Workshop Manual - Aumark (BJ1051)
P. 1050
41-10
Steering mechanism-combination swtich assembly
(c). Pull out the connector case of the
combination switch assembly from the
support and disconnect the 2 groups of
connectors.
(d). Loosen the 4 screws and take down the
combination switch assembly.
41
Page 1050
