41-8
Steering mechanism-steering wheel

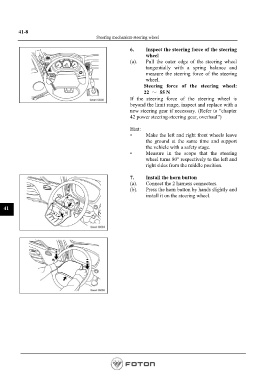

6. Inspect the steering force of the steering
wheel
(a). Pull the outer edge of the steering wheel
tangentially with a spring balance and
measure the steering force of the steering
wheel.
Steering force of the steering wheel:
22 ～ 55 N
If the steering force of the steering wheel is
beyond the limit range, inspect and replace with a
new steering gear if necessary. (Refer to “chapter
42 power steering-steering gear, overhaul”)

Hint:
• Make the left and right front wheels leave
the ground at the same time and support
the vehicle with a safety stage.
• Measure in the scope that the steering
wheel turns 80° respectively to the left and
right sides from the middle position.

7. Install the horn button
(a). Connect the 2 harness connectors.
(b). Press the horn button by hands slightly and
install it on the steering wheel.

41
