P. 1043
41-3
Steering mechanism-steering mechanism

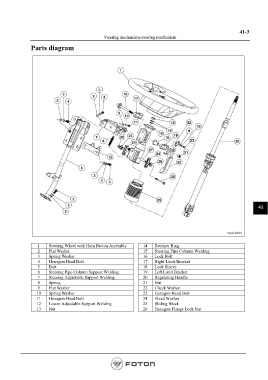

Parts diagram
41
1 Steering Wheel with Horn Button Assembly 14 Retainer Ring
2 Flat Washer 15 Steering Pipe Column Welding
3 Spring Washer 16 Lock Bolt
4 Hexagon Head Bolt 17 Right Limit Bracket
5 Bolt 18 Lock Sleeve
6 Steering Pipe Column Support Welding 19 Left Limit Bracket
7 Steering Adjustable Support Welding 20 Regulating Handle
8 Spring 21 Nut
9 Flat Washer 22 Check Washer
10 Spring Washer 23 Hexagon Head Bolt
11 Hexagon Head Bolt 24 Fixed Washer
12 Lower Adjustable Support Welding 25 Sliding Block
13 Nut 26 Hexagon Flange Lock Nut
