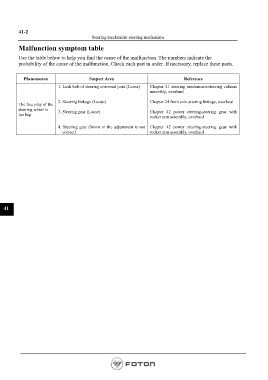

Page 1042 - Workshop Manual - Aumark (BJ1051)
P. 1042
41-2
Steering mechanism-steering mechanism
Malfunction symptom table
Use the table below to help you find the cause of the malfunction. The numbers indicate the
probability of the cause of the malfunction. Check each part in order. If necessary, replace these parts.
Phenomenon Suspect Area Reference
1. Lock bolt of steering universal joint (Loose) Chapter 41 steering mechanism-steering column
assembly, overhaul
2. Steering linkage (Loose) Chapter 24 front axle-sttering linkage, overhaul
The free play of the
steering wheel is 3. Steering gear (Loose) Chapter 42 power steering-steering gear with
too big
rocker arm assembly, overhaul
4. Steering gear (Worn or the adjustment is not Chapter 42 power steering-steering gear with
correct) rocker arm assembly, overhaul
41
Page 1042
