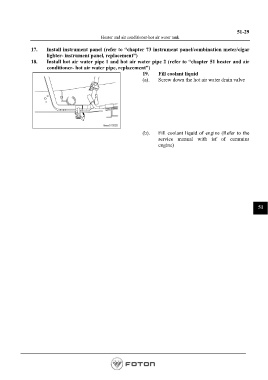

Page 1121 - Workshop Manual - Aumark (BJ1051)
P. 1121
51-29
Heater and air conditioner-hot air water tank
17. Install instrument panel (refer to “chapter 73 instrument panel/combination meter/cigar
lighter- instrument panel, replacement”)
18. Install hot air water pipe 1 and hot air water pipe 2 (refer to “chapter 51 heater and air
conditioner- hot air water pipe, replacement”)
19. Fill coolant liquid
(a). Screw down the hot air water drain valve
(b). Fill coolant liquid of engine (Refer to the
service manual with isf of cummins
engine)
51
Page 1121
