P. 1118

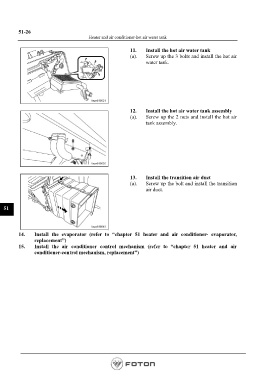

51-26
Heater and air conditioner-hot air water tank
11. Install the hot air water tank
(a). Screw up the 3 bolts and install the hot air
water tank.
12. Install the hot air water tank assembly
(a). Screw up the 2 nuts and install the hot air
tank assembly.
13. Install the transition air duct
(a). Screw up the bolt and install the transition
air duct.
51
14. Install the evaporator (refer to “chapter 51 heater and air conditioner- evaporator,
replacement”)
15. Install the air conditioner control mechanism (refer to “chapter 51 heater and air
conditioner-control mechanism, replacement”)
