51-22
Heater and air conditioner-hot air water tank

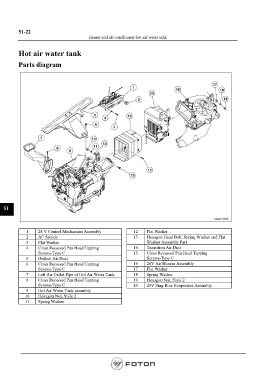

Hot air water tank
Parts diagram
51
1 24 V Control Mechanism Assembly 12 Flat Washer
2 AC Switch 13 Hexagon Head Bolt, Spring Washer and Flat
3 Flat Washer Washer Assembly Part
4 Cross Recessed Pan Head Tapping 14 Transition Air Duct
Screws-Type C 15 Cross Recessed Pan Head Tapping
5 Defrost Air Duct Screws-Type C
6 Cross Recessed Pan Head Tapping 16 24V Air Blower Assembly
Screws-Type C 17 Flat Washer
7 Left Air Outlet Pipe of Hot Air Water Tank 18 Spring Washer
8 Cross Recessed Pan Head Tapping 19 Hexagon Nut, Style 2
Screws-Type C 20 24V Sing Row Evaporator Assembly
9 Hot Air Water Tank assembly
10 Hexagon Nut, Style 2
11 Spring Washer
