P. 1111
51-19
Heater and air conditioner-air duct of instrument panel

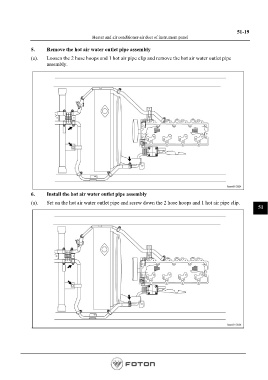

5. Remove the hot air water outlet pipe assembly
(a). Loosen the 2 hose hoops and 1 hot air pipe clip and remove the hot air water outlet pipe
assembly.
6. Install the hot air water outlet pipe assembly
(a). Set on the hot air water outlet pipe and screw down the 2 hose hoops and 1 hot air pipe clip.
51
