51-16

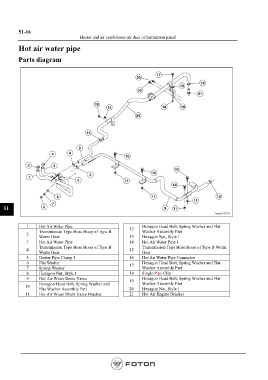

Heater and air conditioner-air duct of instrument panel
Hot air water pipe
Parts diagram
51
1 Hot Air Water Pipe 12 Hexagon Head Bolt, Spring Washer and Flat
Transmission Type Hose Hoop of Type B Washer Assembly Part
2
Worm Gear 13 Hexagon Nut, Style 1
3 Hot Air Water Pipe 14 Hot Air Water Pipe 1
Transmission Type Hose Hoop of Type B Transmission Type Hose Hoop of Type B Worm
4 15
Worm Gear Gear
5 Heater Pipe Clamp 1 16 Hot Air Water Pipe Connector
6 Flat Washer 17 Hexagon Head Bolt, Spring Washer and Flat
7 Spring Washer Washer Assembly Part
8 Hexagon Nut, Style 1 18 Single Pipe Clip
9 Hot Air Water Drain Valve 19 Hexagon Head Bolt, Spring Washer and Flat
Hexagon Head Bolt, Spring Washer and Washer Assembly Part
10
Flat Washer Assembly Part 20 Hexagon Nut, Style 1
11 Hot Air Water Drain Valve Bracket 21 Hot Air Engine Bracket
