51-13

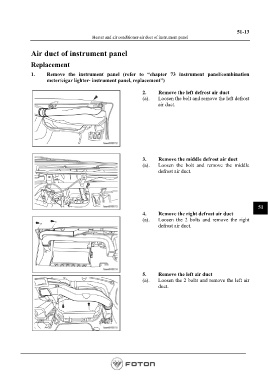

Heater and air conditioner-air duct of instrument panel
Air duct of instrument panel
Replacement
1. Remove the instrument panel (refer to “chapter 73 instrument panel/combination
meter/cigar lighter- instrument panel, replacement”)
2. Remove the left defrost air duct
(a). Loosen the bolt and remove the left defrost
air duct.
3. Remove the middle defrost air duct
(a). Loosen the bolt and remove the middle
defrost air duct.
51
4. Remove the right defrost air duct
(a). Loosen the 2 bolts and remove the right
defrost air duct.
5. Remove the left air duct
(a). Loosen the 2 bolts and remove the left air
duct.
