P. 1110
51-18
Heater and air conditioner-air duct of instrument panel

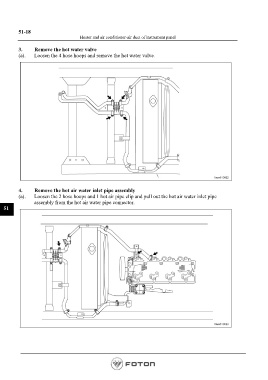

3. Remove the hot water valve
(a). Loosen the 4 hose hoops and remove the hot water valve.
4. Remove the hot air water inlet pipe assembly
(a). Loosen the 2 hose hoops and 1 hot air pipe clip and pull out the hot air water inlet pipe
assembly from the hot air water pipe connector.
51
Page 1110
